| NIC IP: 192.168.1.2 |
Subnet Mask: 255.255.255.0 |
Modem IP: 192.168.1.1 |
It is not necessary to specify an IP in the TCP/IP
settings unless you need to ping the NIC and/or modem,
or the user is receiving TAP errors. If you do specify
the IP, you should use the above settings for this
modem. Enter these settings in the TCP/IP properties of
the Ethernet Adapter connected to the DSL modem. Do not
change TCP/IP properties of any other adapters.
Windows (EnterNet 100):
The TCP/IP settings for both the NIC and the NTS PPPoE
Adapter are normally set the same way as the TCP/IP for
the Dial-up Adapter is set:
• Obtain an IP address automatically
• Disable WINS resolution
• Installed gateways is blank
• Disable DNS
The Windows 95/98 Network Control Panel should have the
following components:
• Client for Microsoft Networks (or Microsoft
Family Logon, but not both)
• Dial-up Adapter (optional but good backup to
have)
• Ethernet Adapter, such as 3Com Etherlink XL
PCI (3C900b-TPO), or Linksys LNE 100 PCI Network
Interface Card
• Network TeleSystems PPPoE Adapter (NTSPPP3)
• TCP/IP -> Dial-up Adapter
• TCP/IP -> Ethernet Adapter
• TCP/IP -> Network TeleSystems PPPoE
Adapter (NTSPPP3)
The user may have VPN
support as well although it is not required
VPN by default adds the NetBEUI protocol and binds it to
all the adapters. If the computer is not on a network,
then all instances of NetBEUI can be removed. If the
computer is on a network and using NetBEUI, then leave
NetBEUI -> Ethernet Card in place and just remove the
others. Same is true for IPX/SPX protocol if present.
Mac (EnterNet 100):
TCP/IP Control Panel configuration:
• Connect via: EnterNet
• Configure: Using PPP Server
• Name server addr.:
207.217.126.81 for EarthLink or
207.69.188.185 for MindSpring
207.217.77.82 for EarthLink or
207.69.188.186 for MindSpring
• Additional Search Domains: earthlink.net or
mindspring.com
• Click the Options button in the lower right
and insure:
"Make TCP/IP Active"
is checked
"Load only when
needed" in not checked
(if the Options button is not visible, go to the menu at
the top of the screen and select Edit - User Mode,
select the Advanced option and click OK).
If you need to ping the NIC and/or modem on a Mac:
Change TCP/IP from "Connect via Enternet" to
"Connect via Ethernet" and change
"Configure Using PPP Server" to
"Configure Manually". Enter the appropriate
IP, then close and save the changes. Run the OT Tool
directly from the MindSpring CD. (located in the Other
Software or Software Depot folder) In the lower right
corner, enter the NIC or router's IP address and click
on the "Ping" button. See
OT Tool is also available here.

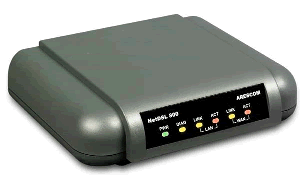

Arescom
800 Manual 3.31MB
|
